Multistage Centrifugal Blowers

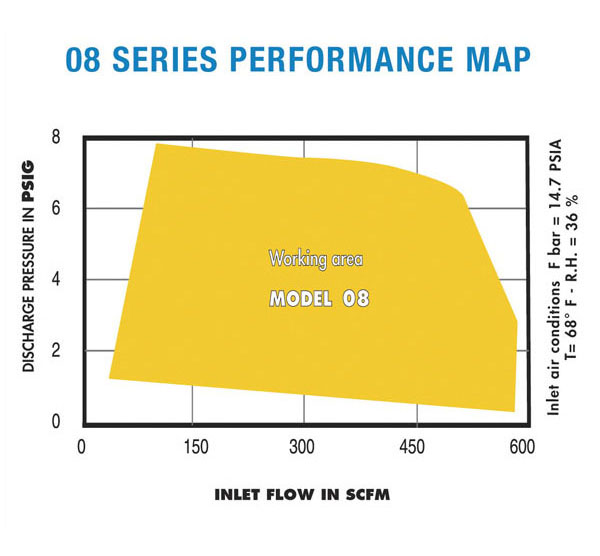

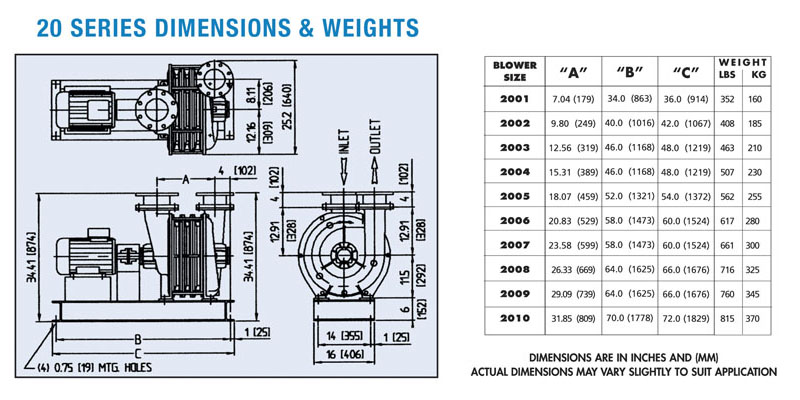

Number Of Stages:

1 thru 10 (cast)

Inlet Connection:

4" (102 mm) flange, matches 125# ANSI

Outlet Connection:

2.5" (63.5 mm) flange, matches 125# ANSI

Operating Speed:

3600 rpm in direct drive (60Hz)

Lubrication:

Grease lubricated

Impeller Diameter:

14" (355.6 mm)

Impeller Tip Speed:

246 f/s (75 m/s)

Drive:

Direct drive or V-belts

Vibration Tolerance:

1.5 mils peak-to-peak (5.4 mm /s)

Shaft End:

0.86" (38 mm), inlet end drive standard

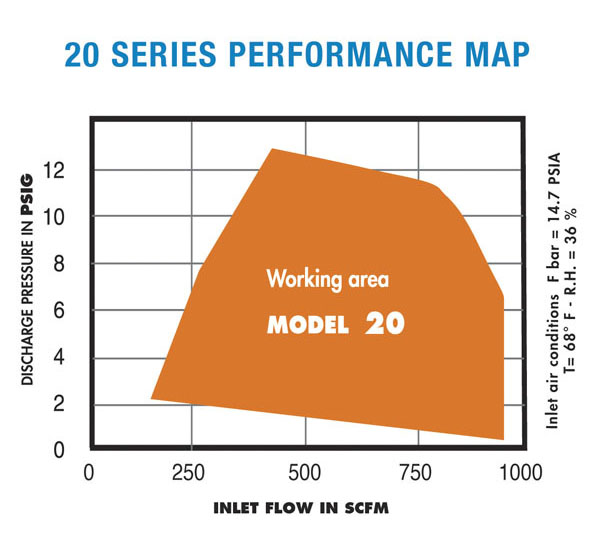

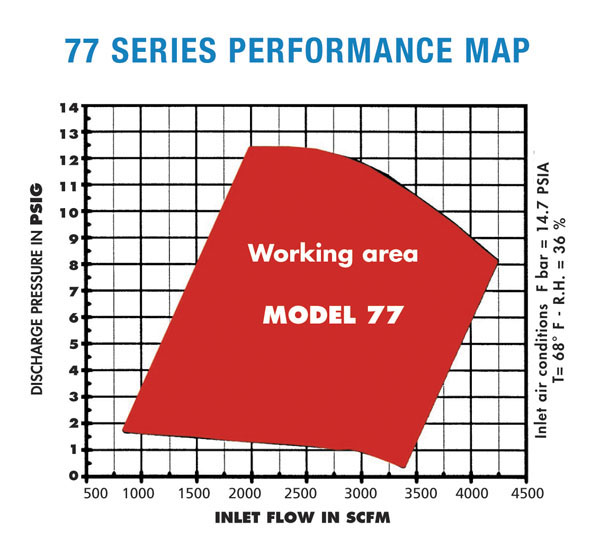

Number Of Stages:

1 thru 10 (cast)

Inlet Connection:

6" (152 mm) flange, matches 125# ANSI

Outlet Connection:

5" (127 mm) flange, matches 125# ANSI

Operating Speed:

3600 rpm in direct drive (60Hz)

Lubrication:

Grease lubricated

Impeller Diameter:

16" (406.4 mm)

Impeller Tip Speed:

246 f/s (75 m/s)

Drive:

Direct drive or V-belts

Vibration Tolerance:

1.5 mils peak-to-peak (5.4 mm /s)

Shaft End:

1" 1/2 (38 mm), inlet end drive standard

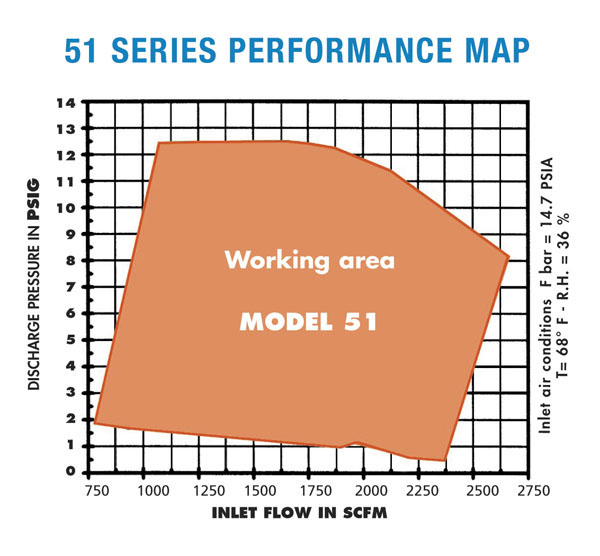

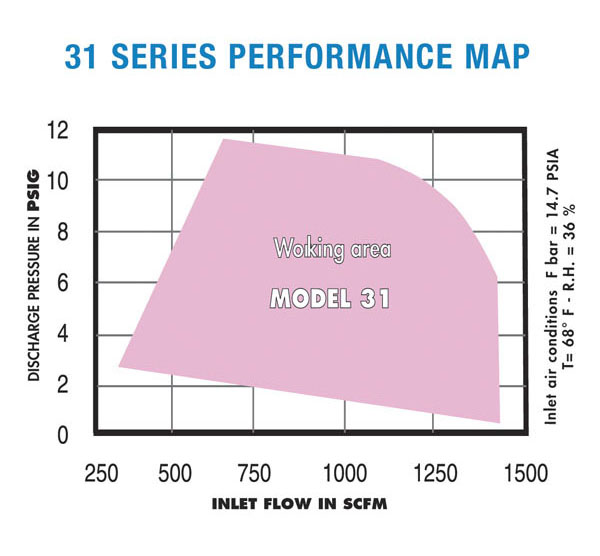

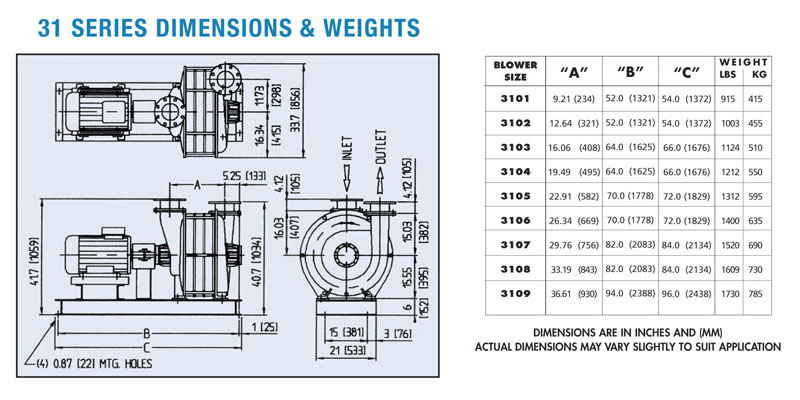

Number Of Stages:

1 thru 9 (cast)

Inlet Connection:

6" (152 mm) flange, matches 125# ANSI

Outlet Connection:

6" (152 mm) flange, matches 125# ANSI

Operating Speed:

3600 rpm in direct drive (60Hz)

Lubrication:

Grease lubricated

Impeller Diameter:

24" (611 mm)

Impeller Tip Speed:

437 f/s (133.26 m/s)

Drive:

Direct drive or V-belts

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Shaft End:

1" 3/4 (45 mm), inlet end drive standard

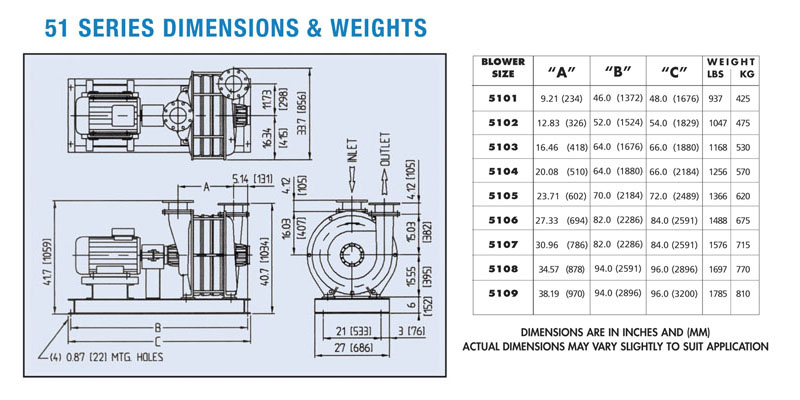

Number Of Stages:

1 thru 9 (cast)

Inlet Connection:

6" (152 mm) flange, matches 125# ANSI

Outlet Connection:

6" (152 mm) flange, matches 125# ANSI

Operating Speed:

3600 rpm in direct drive (60Hz)

Lubrication:

Grease lubricated

Impeller Diameter:

24" (611 mm)

Impeller Tip Speed:

439 f/s (133.26 m/s)

Drive:

Direct drive or V-belts

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Shaft End:

1" 3/4 (45 mm), inlet end drive standard

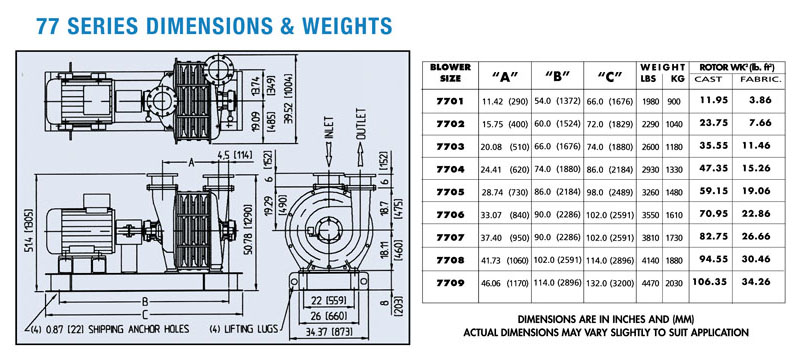

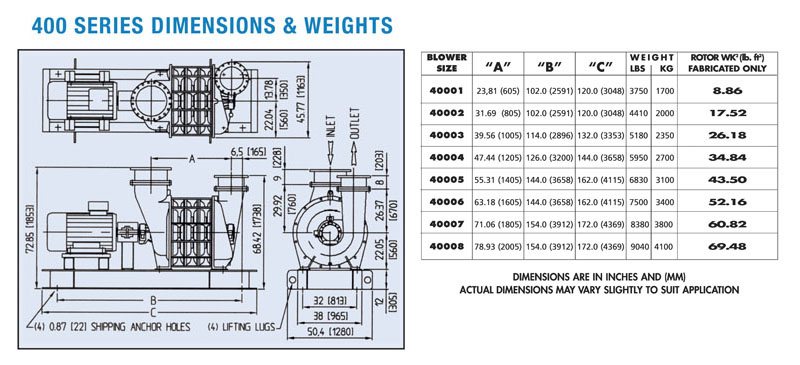

Number Of Stages:

1 thru 8 (cast) - 1 thru 11 (fabricated)

Inlet Connection:

8" (202 mm) flange, matches 125# ANSII

Outlet Connection:

8" (202 mm) flange, matches 125# ANSII

Operating Speed:

3550 rpm in direct drive (60Hz)

Lubrication:

Oil type with constant level (grease optional)

Impeller Diameter:

24" (611 mm)

Impeller Tip Speed:

372 f/s (113 m/s)

Drive:

Direct drive or gear box or V-belts

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Shaft End:

2" 3/8 (60 mm ), inlet end drive standard

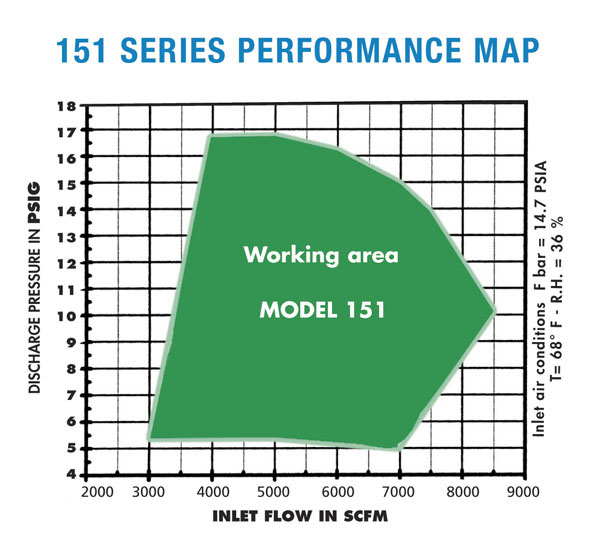

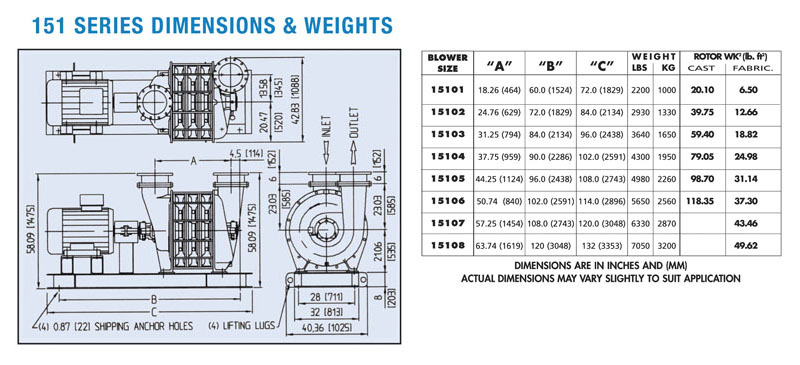

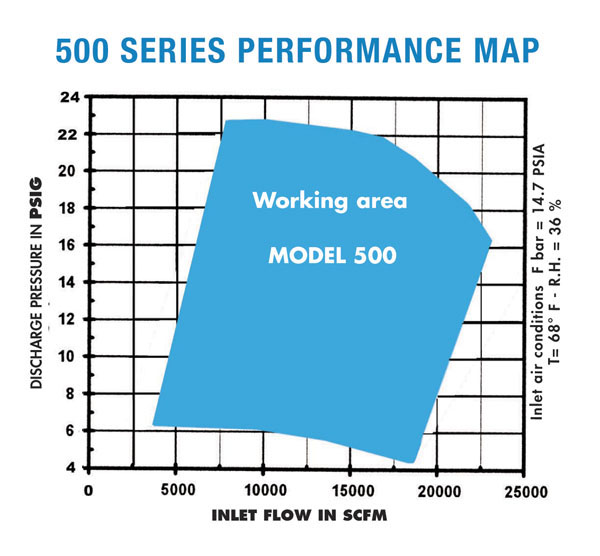

Number Of Stages:

1 thru 7 (cast) - 1 thru 8 (fabricated)

Inlet Connection:

12" (305 mm) flange, matches 125# ANSI

Outlet Connection:

12" (305 mm) flange, matches 125# ANSI

Operating Speed:

3550 rpm in direct drive (60Hz)

Lubrication:

Oil type with constant level

Impeller Diameter:

25" (636 mm)

Impeller Tip Speed:

390 fps (119 m/sec)

Drive:

Direct drive or gear box or V-belts

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Shaft End:

2" 3/8 (60 mm ), inlet end drive standard

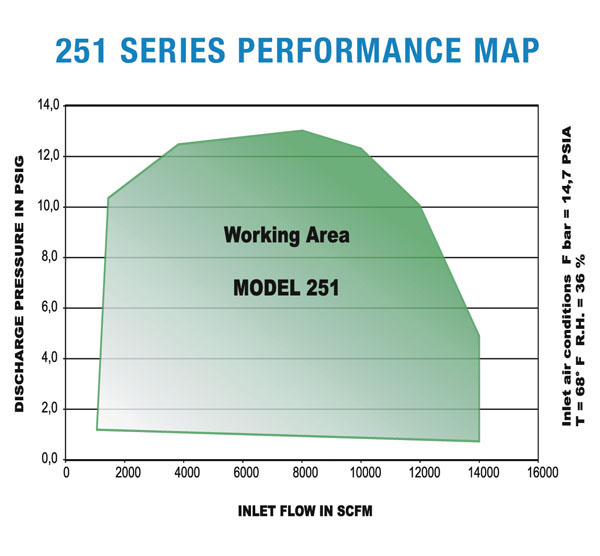

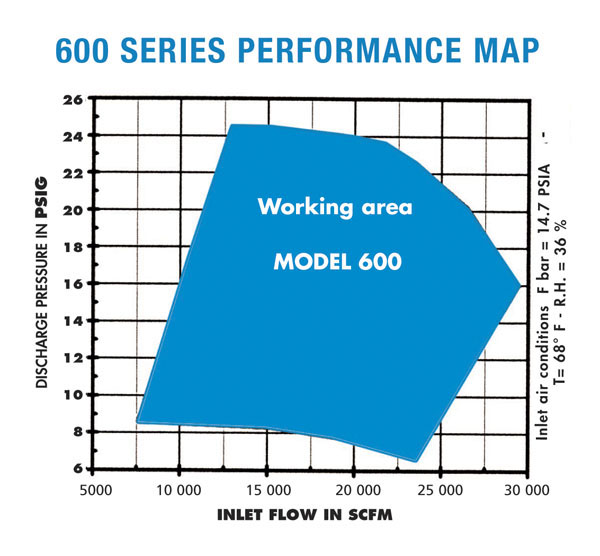

Number Of Stages:

1 thru 7 (8 for 50Hz)

Inlet Connection:

14" (356 mm) flange, ANSI 125# drilling

Outlet Connection:

14" (356 mm) flange, ANSI 125# drilling

Operating Speed:

3550 rpm in direct drive (60Hz)

Lubrication:

Oil type with constant level

Impeller Diameter:

26" (662 mm)

Impeller Tip Speed:

400 fps (122 m / sec)

Drive:

Direct drive or gear box or V-belts

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Balance Piston:

From 5 to 8 stages with pipe connection

Shaft End:

2" 9/16 (65mm) diameter, inlet end drive standard

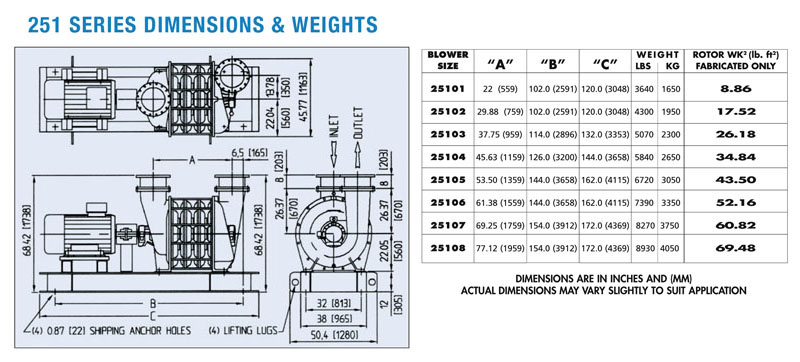

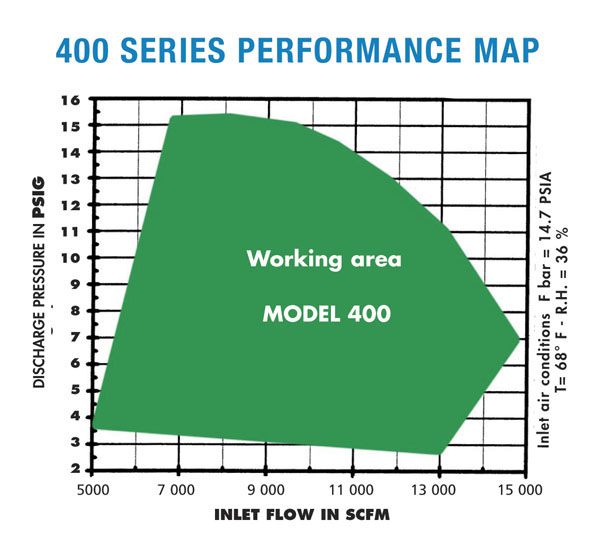

Number Of Stages:

1 thru 8

Inlet Connection:

18" (455 mm) flange, matches 125# ANSI

Outlet Connection:

14" (356 mm) flange, ANSI 125# drilling

Operating Speed:

3550 rpm in direct drive (60Hz)

Lubrication:

Oil type with constant level

Impeller Diameter:

26" (662 mm)

Impeller Tip Speed:

405 fps (122 m / sec)

Drive:

Direct drive or gear box or V-belts

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Balance Piston:

From 4 to 8 stages with pipe connection

Shaft End:

2" 9/16 (65mm) diameter, inlet end drive standard

Number Of Stages:

1 thru 9

Inlet Connection:

16" (420 mm) flange, PN 10 DN 400

Outlet Connection:

14" (355 mm) flange, PN 10 DN 350

Operating Speed:

3570 rpm in direct drive (60Hz)

Lubrication:

Oil type with constant level

Impeller Diameter:

29" (736,5 mm)

Impeller Tip Speed:

452 fps (138 m/sec)

Drive:

Direct drive or gear box or V-belts

Vibration Tolerance:

1.34 mills peak-to-peak (4,5 mm/s RMS)

Balance Piston:

From 3 to 9 stages

Shaft End:

2" 3/4 (70 mm), inlet end drive standard

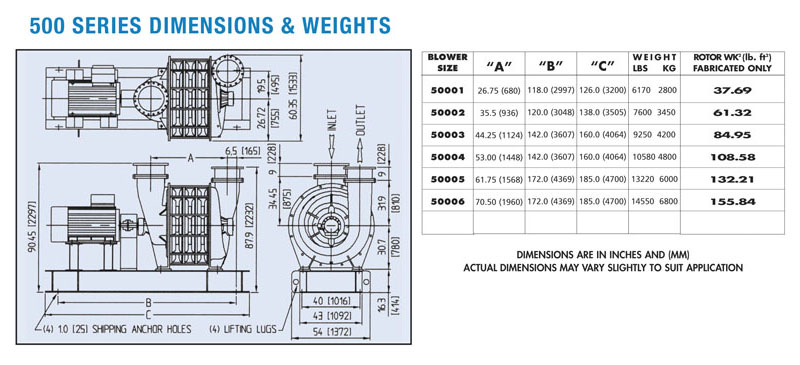

Number Of Stages:

1 thru 7

Inlet Connection:

18" (460 mm) flange, matches 125# ANSI

Outlet Connection:

16" (405 mm) flange, ANSI 125# drilling

Operating Speed:

3550 rpm in direct drive (60Hz)

Lubrication:

Oil type with constant level

Impeller Diameter:

32" (813 mm)

Impeller Tip Speed:

499 fps (152 m / sec)

Drive:

Direct drive or gear box

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Balance Piston:

From 3 to 6 stages with pipe connection

Shaft End:

2" 9/16 (75mm) diameter, inlet end drive standard

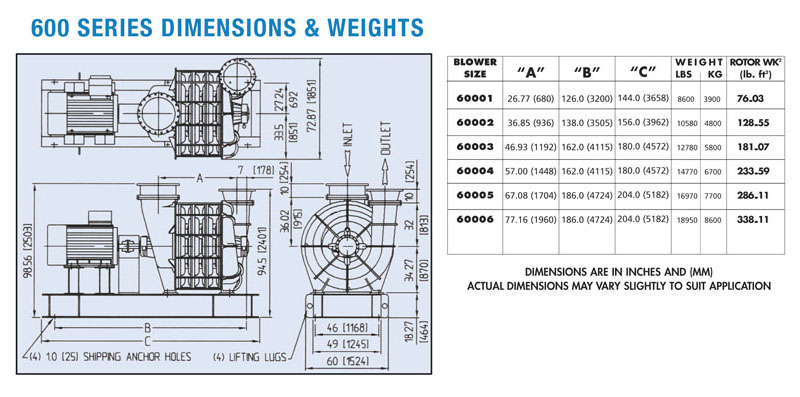

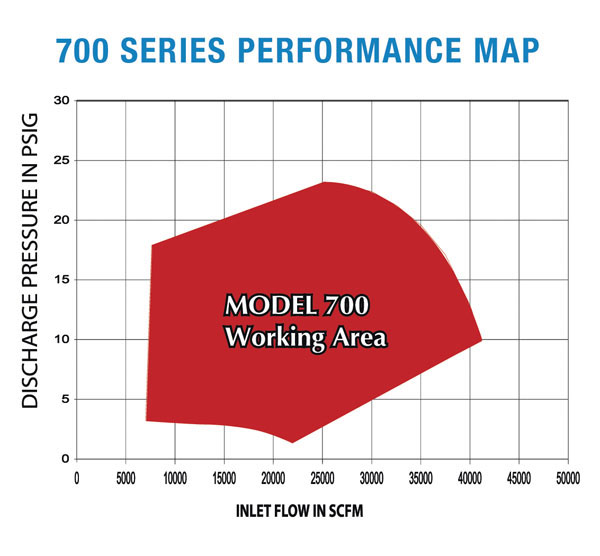

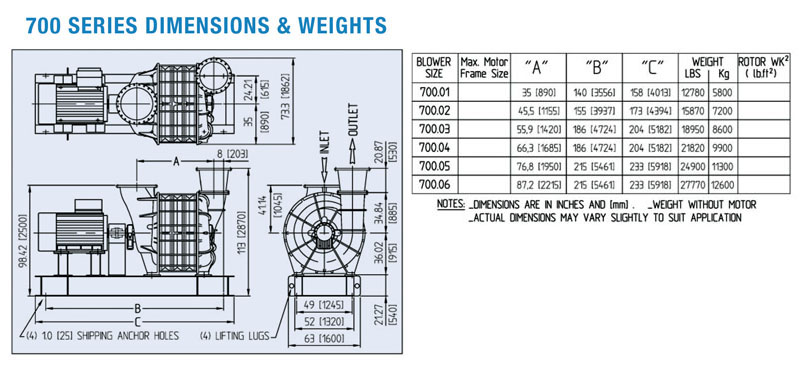

Number Of Stages:

1 thru 6

Inlet Connection:

24" (612 mm) flange, matches 125# ANSI

Outlet Connection:

20" (511 mm) flange, matches 125# ANSI or 18" (460 mm) flange, matches 125# ANSI

Operating Speed:

3550 rpm in direct drive (60Hz)

Lubrication:

Oil type with constant level

Impeller Diameter:

From 34" (915 mm)

Impeller Tip Speed:

443 fps (135 m / sec)

Drive:

Direct drive or gear box

Vibration Tolerance:

1.25 mils peak-to-peak (4.5 mm /s)

Balance Piston:

From 3 to 6 stages with pipe connection

Shaft End:

3" 3/4 (95 mm), inlet end drive standard
